X-BULL 12,000 lb 12V Electric Winch – Synthetic Rope, Wireless Remote

A 12,000 lb winch is the usual pick for a Wrangler, Cherokee or Grand Cherokee carrying touring gear. This X-BULL unit comes with synthetic rope, which is lighter than steel cable, easier on the hands and far less dangerous if it fails under load.

Features

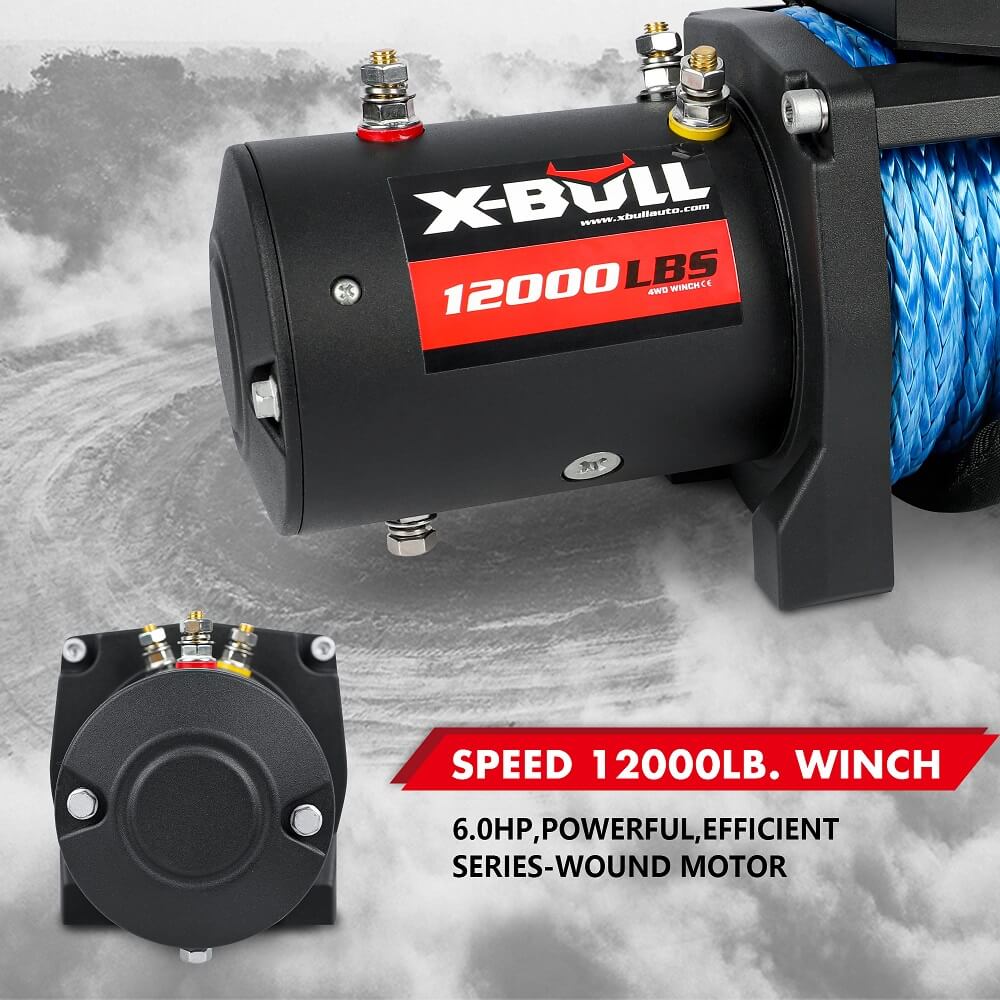

• 6.0 hp series-wound motor
• 3-stage planetary gearbox (265:1) for smooth, controlled pulls
• Automatic in-drum brake holds the load when you stop winching

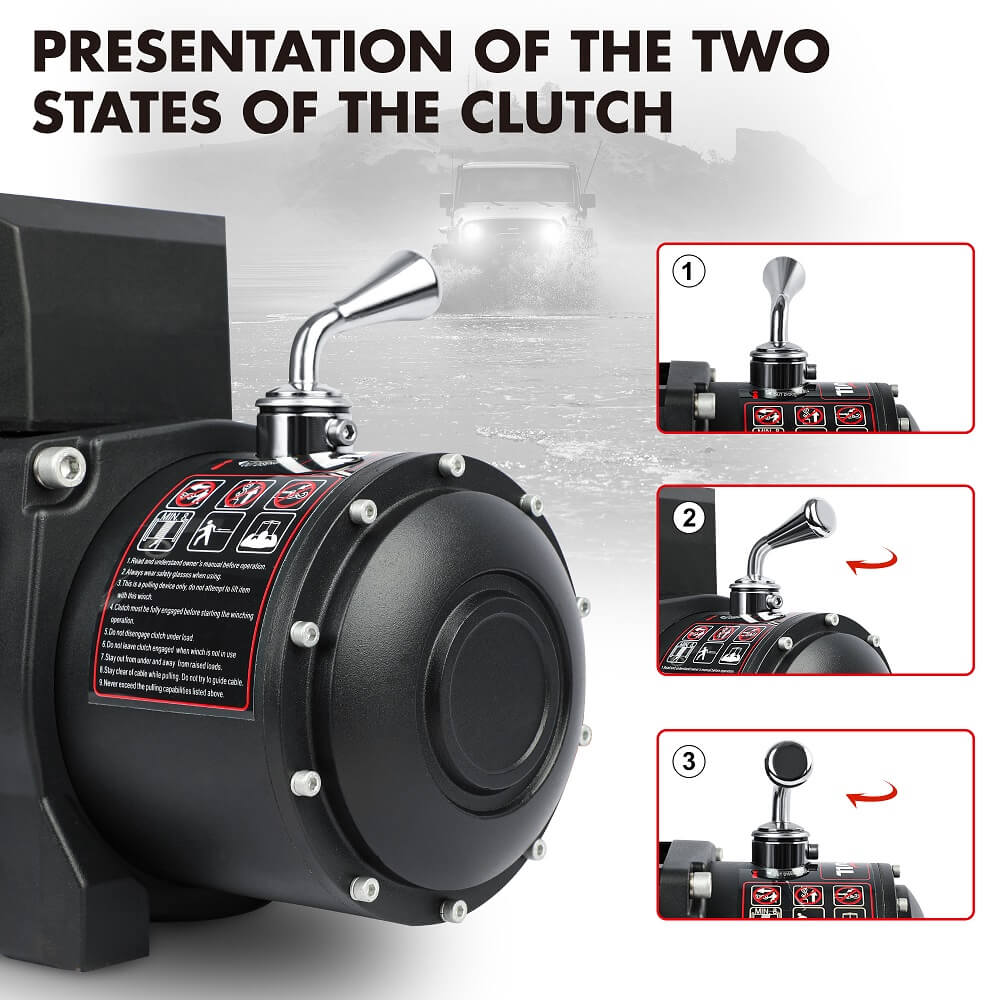

• Free-spool clutch for fast rope pay-out
• Sealed control box
• Wired hand controller plus a wireless remote
• Aluminium hawse fairlead, which is the correct type for synthetic rope

Specifications

• Rated line pull: 12,000 lb (approx. 5,440 kg), single line
• Voltage: 12V

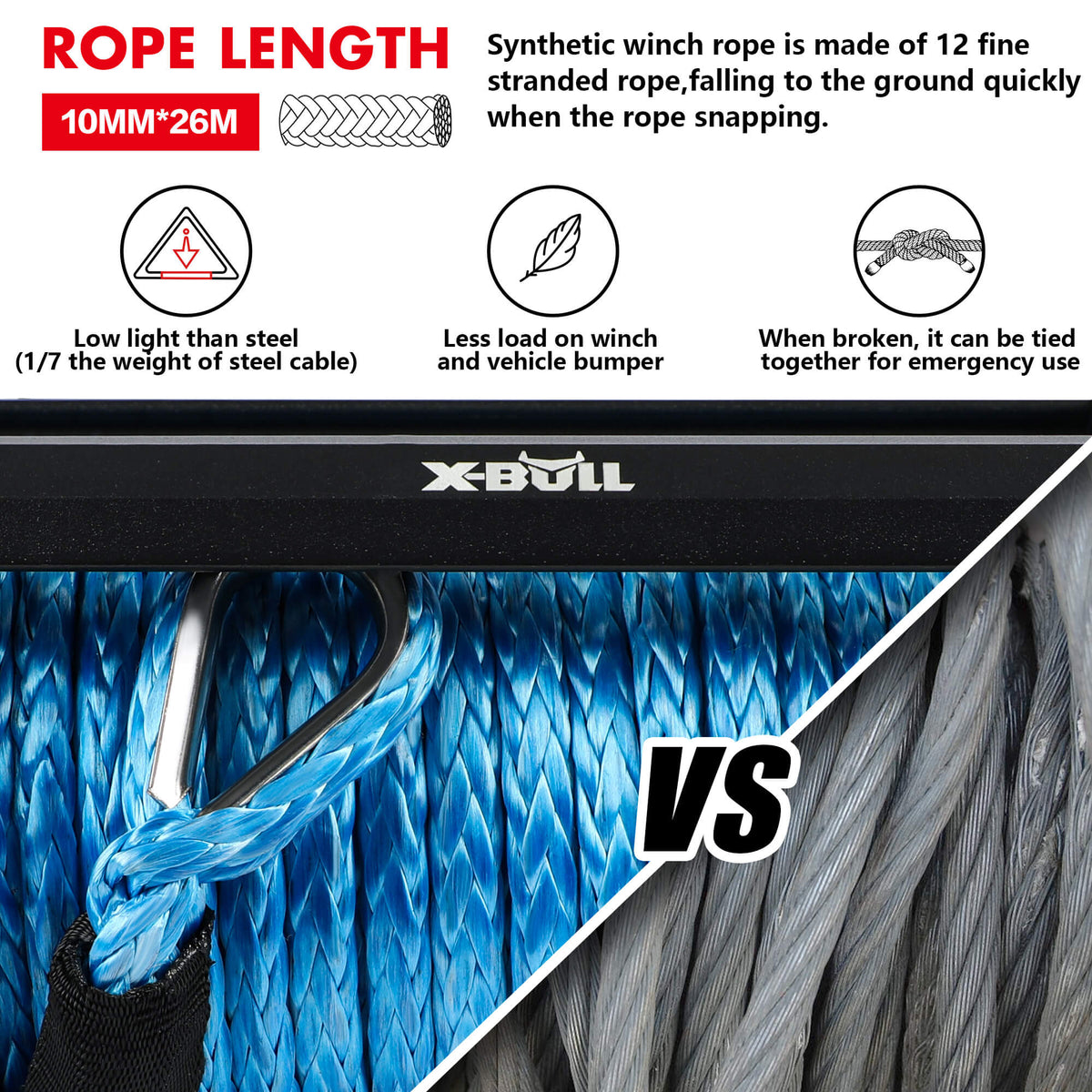

• Rope: 9.5 mm × 26 m synthetic
• Drum: 63.5 × 224 mm
• Dimensions: 530 × 160 × 218 mm
• Weight: approx. 26 kg

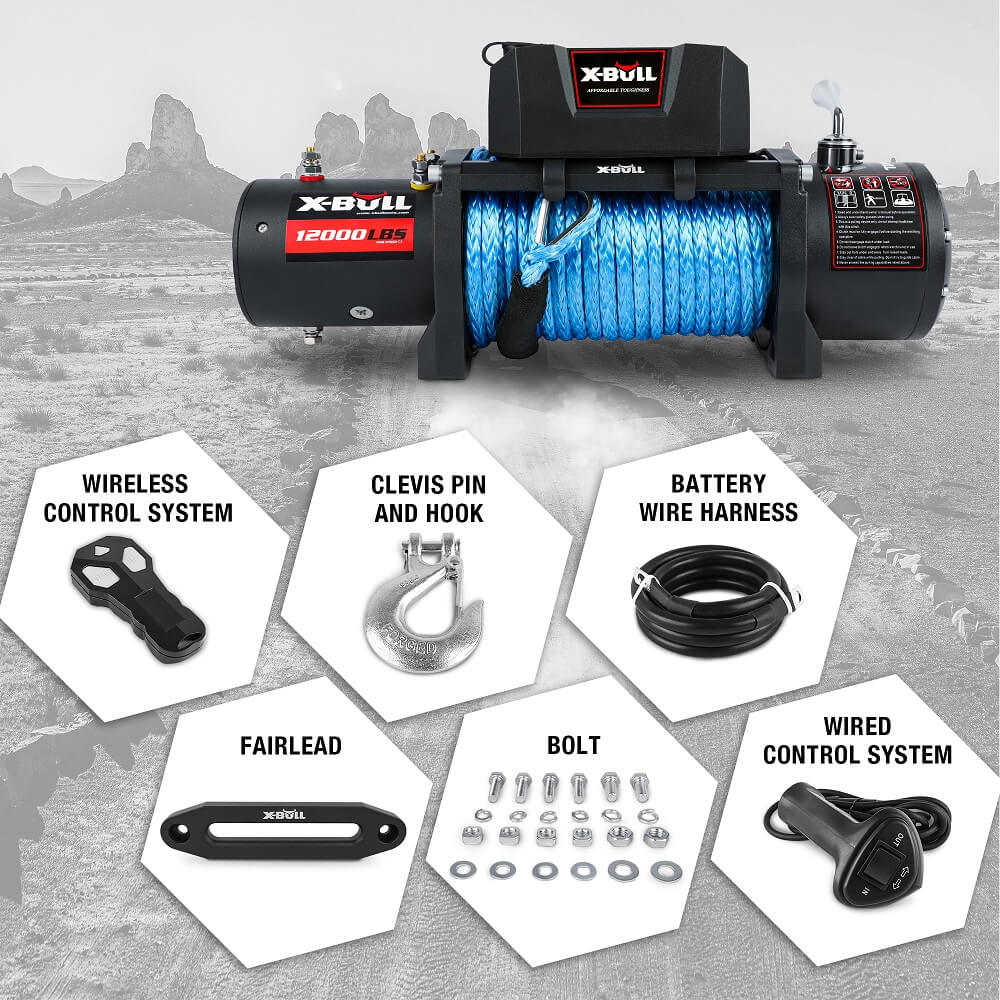

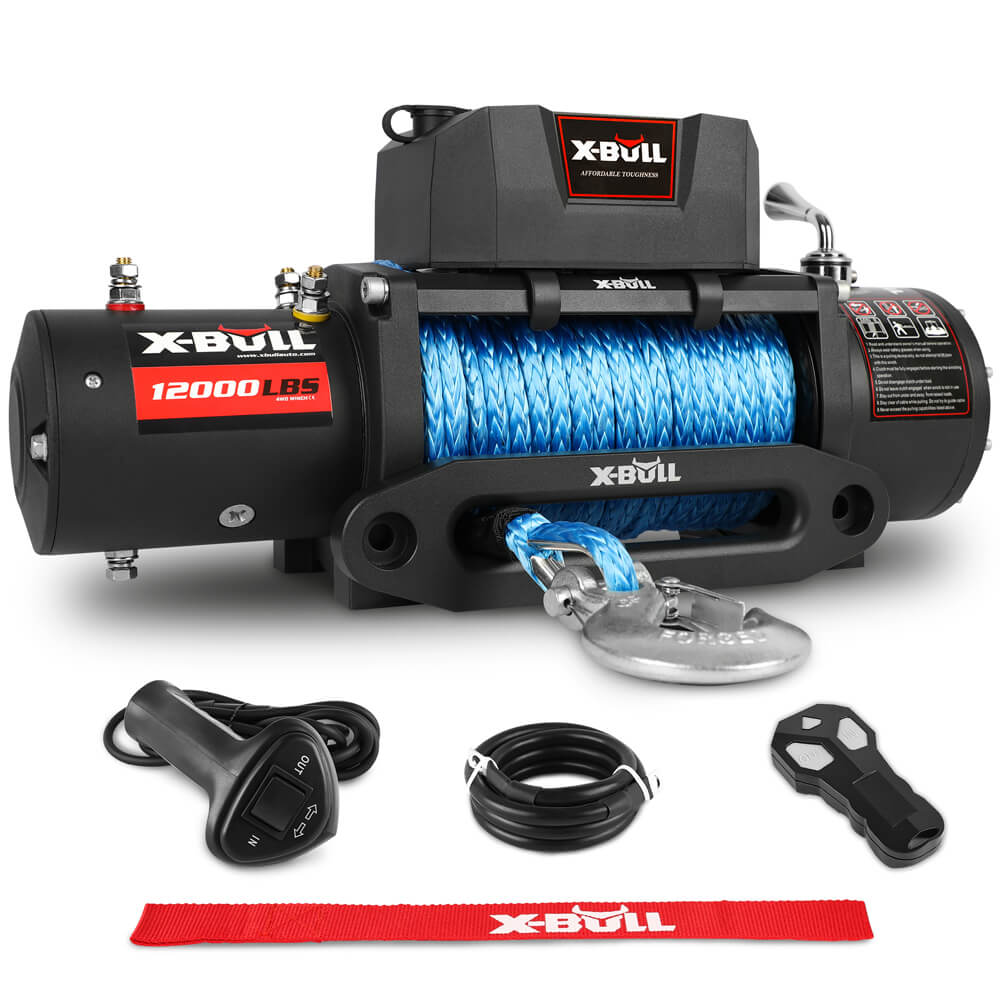

In the box

• 12,000 lb winch with synthetic rope fitted to the drum
• Aluminium hawse fairlead
• Hook with safety catch
• Wired hand controller and wireless remote
• Control box

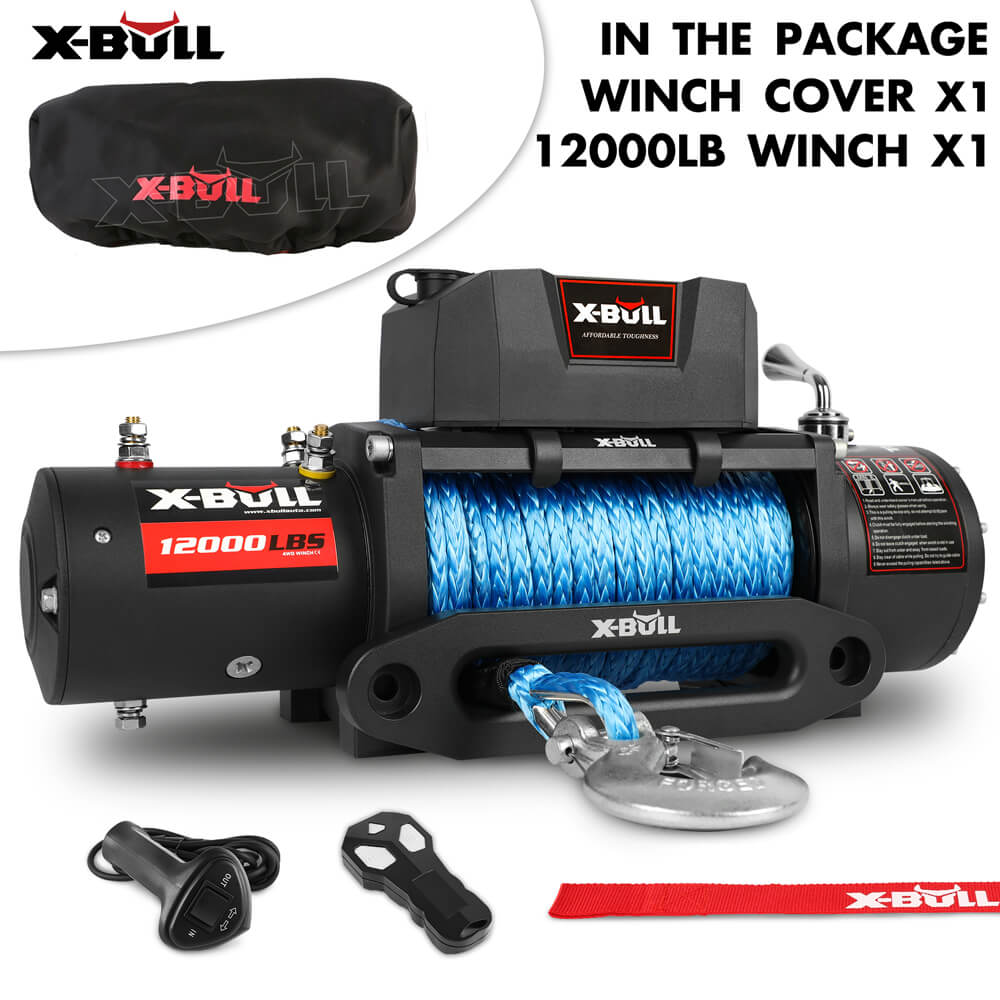

• Winch cover
• Stainless mounting bolts
• User manual

Before you order

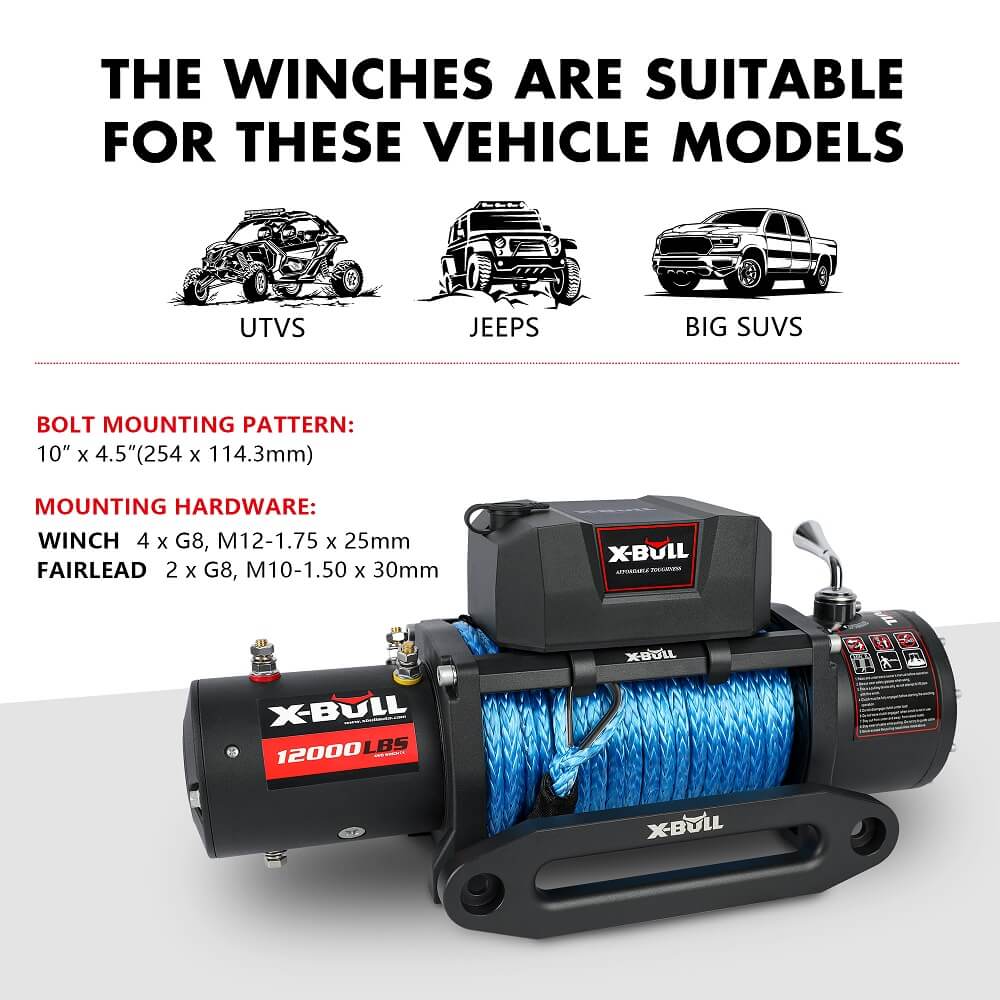

• You'll need a winch-compatible bar or winch cradle. Check your bar's winch mount suits a winch of these dimensions.
• A winch draws very high current. We recommend having it fitted and wired by an auto electrician or 4WD fitter.

Use it safely

• Anchor only to rated recovery points or a tree protected by a tree trunk protector.
• Fit a recovery damper on the line and keep everyone well clear while it's under load.
• Never step over a loaded line, and never spool out the last few wraps of rope on the drum.

Need the gear to rig it? Add the Trail Starter Recovery Pack, which includes a snatch block, shackles, damper and tree protector.

Delivery

Free delivery to VIC, NSW, ACT, SA and TAS. Delivery to QLD, WA and NT is calculated at checkout. This item ships direct from our Australian warehouse partner, separately from any Jeep parts in your order, and tracking is emailed once it has been dispatched.
